What’s New Version 06.01.04
This update from Apple will improve the functionality of this app. No new features are included.
Structural Navigator now supports workflows utilizing ProjectWise Share on Bentley Cloud Services. Previously, the accessibility of i-models was limited to direct download to device via email or from Personal Share.
The latest version of Structural Synchronizer allows direct publishing of i-models to ProjectWise Project. All team members belonging to the same ProjectWise Project using Structural Navigator can now instantly access i-models on their devices to collaborate more effectively, on site or in the office.
Other Enhancements:
* Improvement to Classification Tree – class names replaced with shortId and instance names.
* Improvement to Properties Dialog - class names replaced with shortId and instance names.
* UI improvements to Appearance/Isolate and Hide dialog.
Bug Fixes:
* While using the Measure Distance tool, the Axis distance button returned to its previous state after rotating the model.
* Back button (on the Android version) brought app to an unresponsive state.
* Crash of application occurred when entering text in Advanced Search Dialog.
* Transparency button was unresponsive when the color button was toggled under Visualization.
* Objects on Classification Tree were incorrectly selected when the selection spanned multiple tree levels.
Description

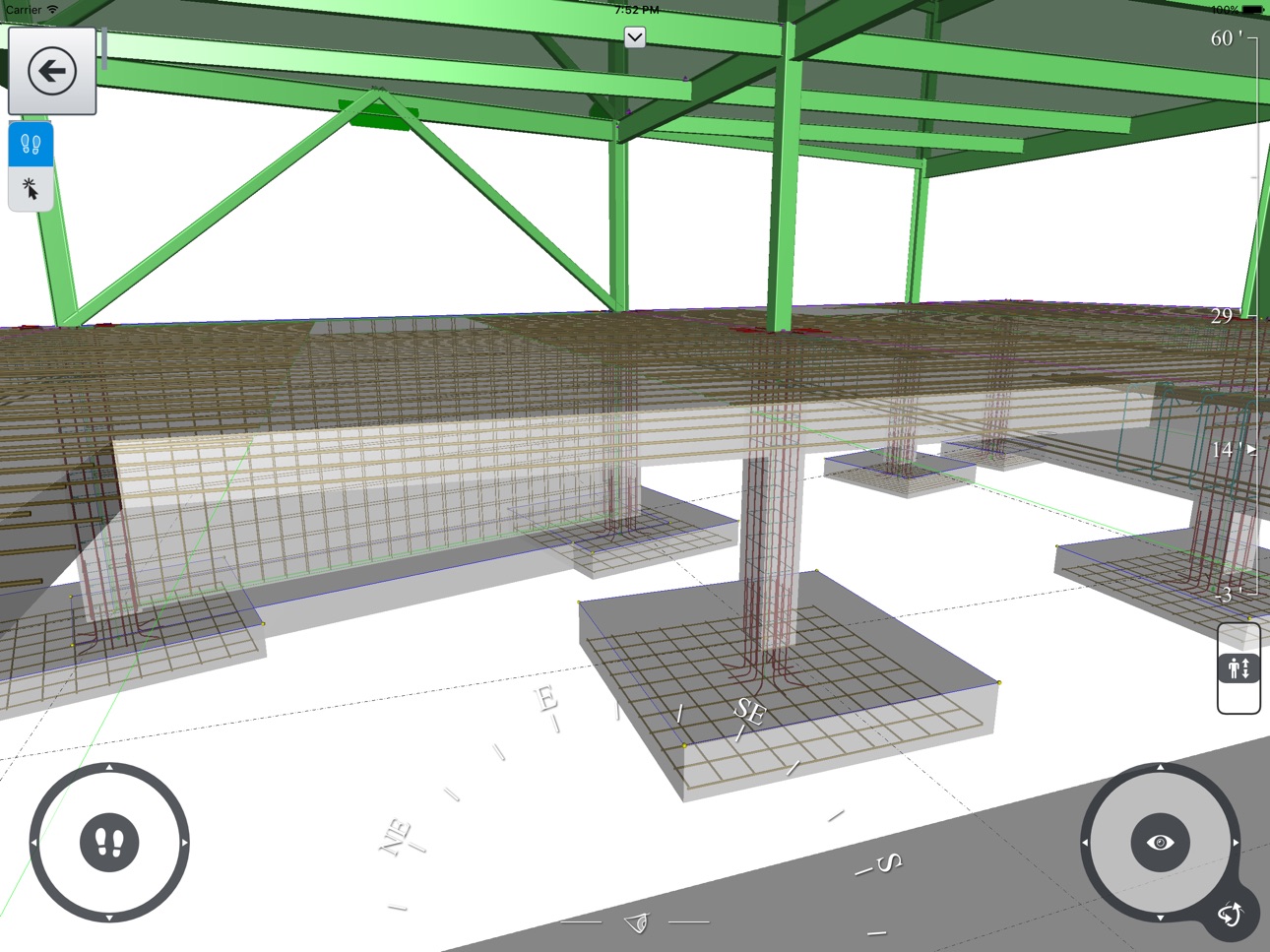

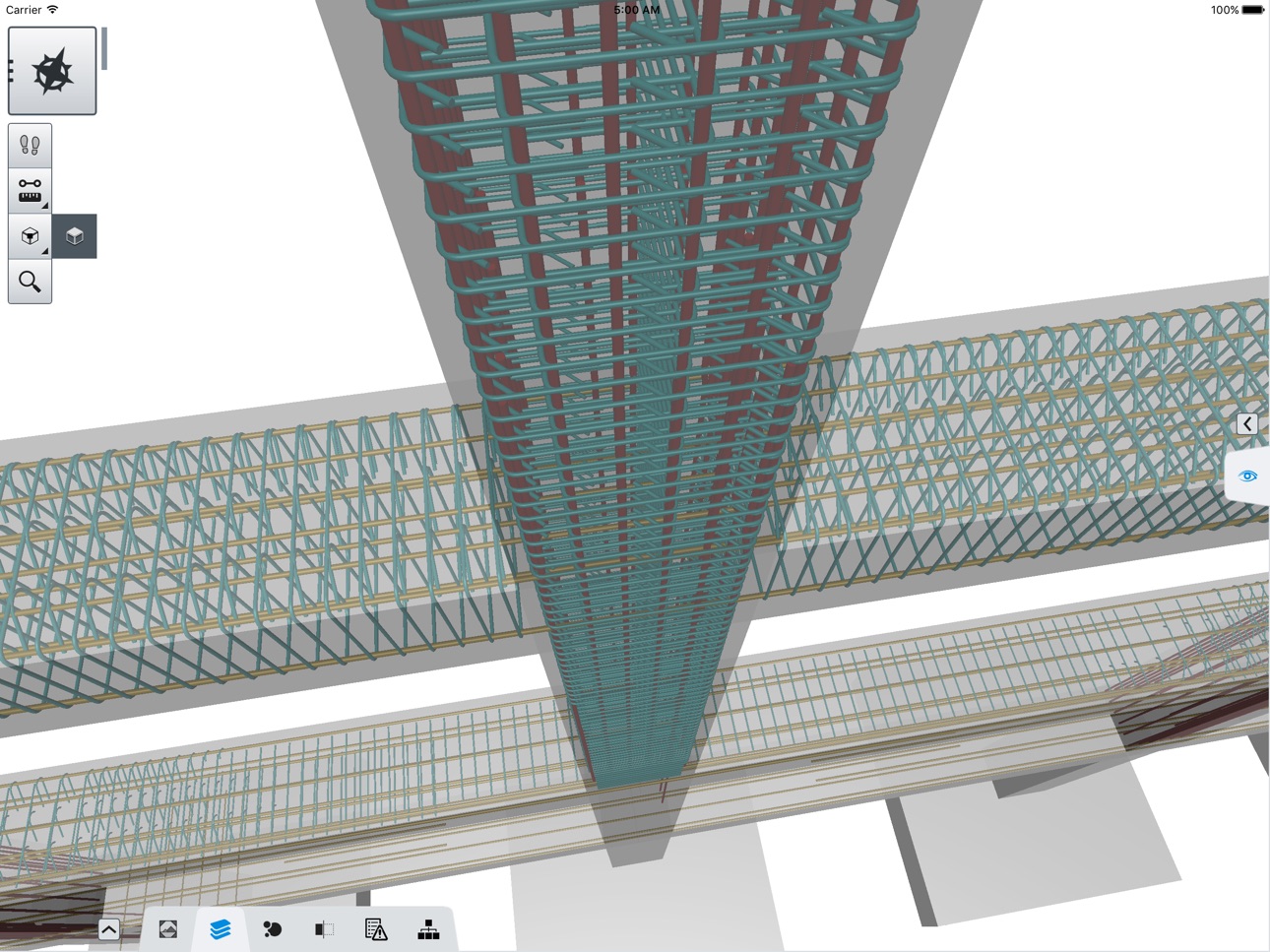

Structural Navigator is the ideal app for the mobile review of 3D structural models. Structural Navigator allows designers to view, query, and red line structural models in 3D from anywhere using a mobile device. With Structural Navigator users can:
* Navigate through 3D models using zoom, rotate, pan, walkthrough, and flyover commands
* Color code elements within the model according to specific properties (for example, slab thickness, pipe diameter, etc.)
* Filter models based on members with common member attributes
* Check for clashes between different types of objects
* Add markups with status, due date, responsible party, and additional information
* Interactively query members for all property values
Structural Navigator reads Bentley's i-model format, to which any ISM repository can be easily converted with a single operation.
The process is simple. Build a data-rich ISM repository using any Bentley ISM-compliant applications desired, convert the ISM repository to i-model, and then review in Structural Navigator. Structural Navigator can read models from any of the following sources once published to i-model:
- STAAD
- RAM
- SACS
- AECOsim
- Revit
- Tekla
- ProStructures
- Dlubal RFEM
Accessibility
ipadiphonemacrealityDevicetvoswatch
Version history 10 versions
Build 826072025v06.01.042018-03-20 14:07:53
This update from Apple will improve the functionality of this app. No new features are included.
Structural Navigator now supports workflows utilizing ProjectWise Share on Bentley Cloud Services. Previously, the accessibility of i-models was limited to direct download to device via email or from Personal Share.
The latest version of Structural Synchronizer allows direct publishing of i-models to ProjectWise Project. All team members belonging to the same ProjectWise Project using Structural Navigator can now instantly access i-models on their devices to collaborate more effectively, on site or in the office.
Other Enhancements:
* Improvement to Classification Tree – class names replaced with shortId and instance names.
* Improvement to Properties Dialog - class names replaced with shortId and instance names.
* UI improvements to Appearance/Isolate and Hide dialog.
Bug Fixes:
* While using the Measure Distance tool, the Axis distance button returned to its previous state after rotating the model.
* Back button (on the Android version) brought app to an unresponsive state.
* Crash of application occurred when entering text in Advanced Search Dialog.
* Transparency button was unresponsive when the color button was toggled under Visualization.
* Objects on Classification Tree were incorrectly selected when the selection spanned multiple tree levels.
Build 820873650v06.01.012017-02-10 18:52:38
Bug-fix: Fixed issue that may cause signing in the application with Single Sign-on to fail.
Build 820184853v06.01.002017-02-01 21:04:34
***IMPORTANT NOTICE***
This version of Structural Navigator does not read i-models published with ISM 5.0 or an earlier version of ISM. To produce i-models from ISM that can be read by this version of Structural Navigator, please install Structural Synchronizer CONNECT Edition Update 1 (ISM 6.0).
Release notes on Bentley Communities: http://communities.bentley.com/products/structural/w/structural__wiki/32262.what-s-new-in-ism-6-0
Enhanced Plan View
Structural Navigator allows the user to select an element in the model and view the corresponding plane in plan view, which is ideal for viewing floor levels in plan. In this release, Structural Navigator adds the ability to rotate out of the plan view and investigate the trimmed model in three dimensions.
Additional Sample Models
In this release of Structural Navigator there are new sample i-models delivered with the application. These models showcase various types of structures and examples of how Structural Navigator can be utilized.
Build 813658741v05.04.022015-10-12 21:57:55
Structural Navigator (formerly Structural Synchronizer View)
All new app built on Bentley Navigator and i-model technology.
Compatible with all .imodel files; extra functionality provided with .imodel files created by Structural Synchronizer CONNECT Edition. Legacy .mism files require republishing.
New features include:
Opens models of any size (that will fit on the device) including attachments
Data Visualization
Sectioning (box, horizontal, vertical)
Issue tracking/punch lists
In-app saved view creation
Model data tree view
Measure: distances and locations
Allows project-centric workflow
Bentley Personal Sharing download support
CONNECT Project file sharing download support
Build 16803201v1.1.32013-09-09 18:11:10
Minor bug fixes
Build 13217321v1.1.22013-01-08 21:22:50
* iPhone 5 support
* Minor bug fixes
Build 10321587v1.1.12012-09-05 15:56:09
1.1.1
* Localizations for German, Spanish, Japanese, Korean, Portuguese, Russian, and Chinese.
1.1.0
* Transparency support
* Fly-Through mode
* Support for MISM models with related members created by ISM 3.0
* Significant memory usage reduction allowing loading of larger models
* Related members shown in Details view
* Load progress indicator
* Support for iPad Retina display
* Revamped help
* Directional zoom during pinch
Build 7956232v1.1.02012-05-16 18:06:55
* Transparency support
* Fly-Through mode
* Support for MISM models with related members created by ISM 3.0
* Significant memory usage reduction allowing loading of larger models
* Related members shown in Details view
* Load progress indicator
* Support for iPad Retina display
* Revamped help
* Directional zoom during pinch
Build 5489162v1.0.12011-12-15 23:02:29
Bug fixes, including problems running on iOS 4.2 and earlier.
Build 4893675v1.0.02011-11-17 17:20:05
