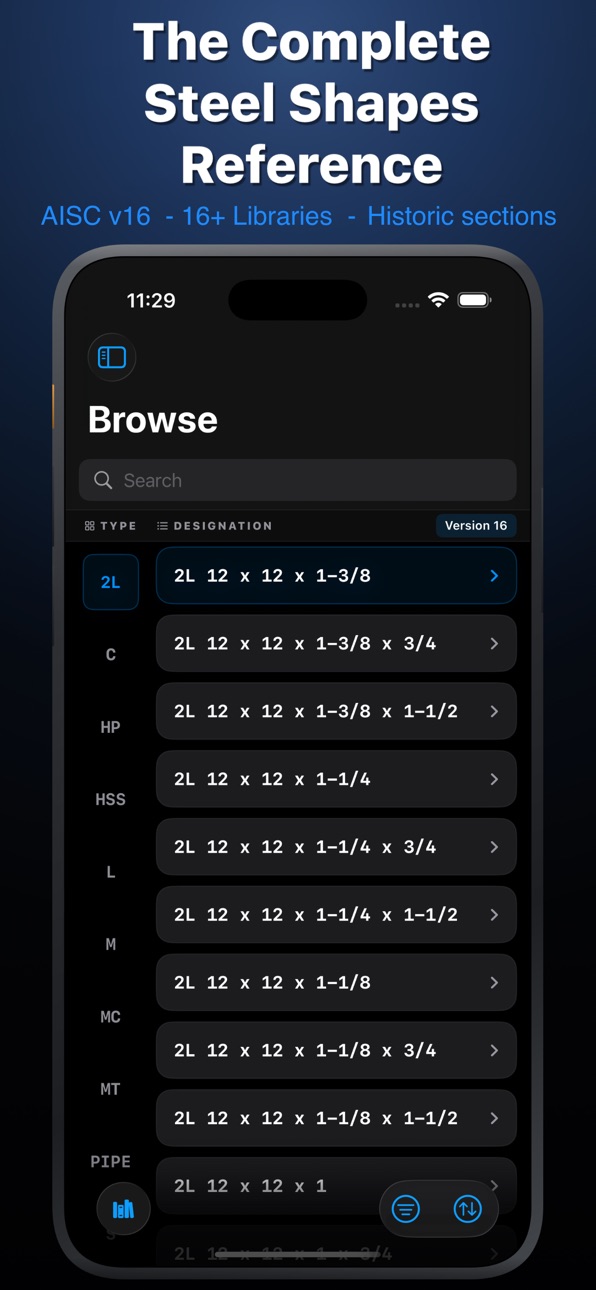

iPhone 6 images
iPad 4 images
What’s New Version 7.0.0
- AISC V16 & 16-SI library
- New UI, rebuilt fro the ground up
- Run on iPhone, iPad, Mac
- New Filter, Bookmarks & Share Print Features
- Dark / Light Mode support
- Dynamic Type Support
- Spanish localization
Description
Decades of steel shapes data. One powerful app.
Steel Shapes brings the complete AISC Structural Steel Database to your fingertips - now updated with the latest Version 16 library, rebuilt from the ground up with powerful new features engineers will love.
Whether you're on a job site, in the office, or at your desk, every structural shape property from the AISC database is right there when you need it: geometric and mechanical properties, design and detailing values, and instant unit conversion between imperial and metric - all in a fast, clean interface.
---WHAT'S INCLUDED
Complete AISC library coverage across every major edition:
• Version 16 & 16-SI (latest)
• Versions 13 through 15
• LRFD 1st – 3rd Edition
• ASD 5th – 9th Edition
• Historic shapes
---NEW IN THIS VERSION
FILTER BY PROPERTIES
Find exactly what you need. Set criteria across any property - weight, depth, moment of inertia, and more - and instantly narrow down the list. Example: "WT or ST sections with weight less than 200 lbs/ft and depth between 10–20 in."
BOOKMARKS
Build a personal library of frequently used shapes, saved across all editions in one place.
SHARE & PRINT
Export any section's full property sheet as a PDF - ready to share, attach, or print directly from the app.
---CORE FEATURES
UNIT SWITCHING
Toggle between English and SI units instantly. Every property updates in one tap.
SORTING
Rank any shape list by any property - find the lightest W-section or the deepest HSS in seconds.
QUICK SEARCH
Flexible search that understands how engineers type. "W16 x 89", "W16x89", or "W1689" all find the same section.
METRIC EQUIVALENCIES
Nearly 2000 shapes with their imperial / metric equivalent designations, one tap away.
The most complete AISC reference app available.
Visit us at steel-shapes.app
Accessibility
ipadiphonemacrealityDevicetvoswatch
Version history 25 versions
Build 853677458v7.0.02026-05-28 10:30:47
- AISC V16 & 16-SI library
- New UI, rebuilt fro the ground up
- Run on iPhone, iPad, Mac
- New Filter, Bookmarks & Share Print Features
- Dark / Light Mode support
- Dynamic Type Support
- Spanish localization
Build 836822371v6.12020-07-13 20:47:47
- Fixes issue where library selection button doesn't immediately update after changing libraries
Build 836091689v6.02020-06-04 01:19:17
- Maintenance release for iOS13
Build 833601255v5.62019-11-15 06:26:16
- Fixes layout issue on Gage reference screen & Gage reference info screen
- Fixes layout on Types info screen
- Improves response of side menu appear / disappear
Build 833166327v5.52019-10-15 17:52:32
- Support for iOS 13
- Improved UI
- Code maintenance
Build 825752531v5.02018-01-25 01:57:49
- iPhone X support
- Updated UI
Build 822611100v4.02017-06-21 15:28:31
64-bit support / iOS 11 ready!
UI improvements / tweaks
Code performance improvements
Build 58842654v3.0.12013-09-26 18:16:42
- Minor tweaks & improvements
Build 51002657v3.0.02013-09-24 19:48:45
- New, fresh interface!
- New Icon
- Code tweaks
Build 31572664v2.8.12013-09-17 17:20:24
2.8.1: fixes crash when selecting HSS Round sections under AISC V14.1
2.8:
- Fixed designation formatting & "b" property description for LLBB double angles
- Reduced file size
In 2.7.5:
- Latest AISC Library, V14.1 & 14.1-SI, which includes:
• Addition of single angle dimensions: wa, wb, wc, za, zb, and zc
• Revised symbols for width, height and slenderness ratio for HSS
B = nominal width
b = flat wall width
b / tdes = width-to-thickness ratio
Ht = nominal height
h = flat wall height
h / tdes = height-to-thickness ratio
- Tweaked menu system
- Mayor code clean-up & rewrite
Build 18012647v2.8.02013-09-08 18:09:57
This is a minor revision to v2.7.5:
- Fixed designation formatting & "b" property description for LLBB double angles
- Reduced file size
In 2.7.5:
- Latest AISC Library, V14.1 & 14.1-SI, which includes:
• Addition of single angle dimensions: wa, wb, wc, za, zb, and zc
• Revised symbols for width, height and slenderness ratio for HSS
B = nominal width
b = flat wall width
b / tdes = width-to-thickness ratio
Ht = nominal height
h = flat wall height
h / tdes = height-to-thickness ratio
- Tweaked menu system
- Mayor code clean-up & rewrite
Build 16717438v2.7.52013-09-07 00:18:12
- Latest AISC Library, V14.1 & 14.1-SI, which includes:
• Addition of single angle dimensions: wa, wb, wc, za, zb, and zc
• Revised symbols for width, height and slenderness ratio for HSS
B = nominal width
b = flat wall width
b / tdes = width-to-thickness ratio
Ht = nominal height
h = flat wall height
h / tdes = height-to-thickness ratio
- Tweaked menu system
- Mayor code clean-up & rewrite
Build 15374655vv2.6.12013-05-15 14:49:01
- UI tweaks
- Code maintenance
- Product availability update
Build 14571273v2.6.02013-03-13 20:07:18
- Code cleanup, removal of no longer used frameworks
Build 13029447v2.5.02013-01-04 23:24:12
- Beam gage information for W, M, S, HP, C, MC, WT, MT & ST sections with flange width > 4"
- Improved formatting of superscript & subscript property labels, capitalization matching AISC's documentation & use of sub-subscripts where adequate
- Added fix/protection for potential crash when trying to convert between unit system while details table is scrolling
Build 12937243v2.1.02012-12-13 18:46:34
- Added subscripts & superscripts to property labels for improved legibility
- Remove of legacy & deprecated code
- UI fix and tweaks
Build 11231255v2.0012012-10-26 17:16:25
- Code maintenance, removal of obsolete code and libraries.
- Added App store languages 9Spanish / Brazilian Portuguese)
Build 10805219v2.0002012-09-25 17:11:33
- Support for iPhone5 4" display and iOS6
- Fixed bugs when converting between imperial fractions to metric for some properties
- Updated data for V14-SI library
- Cleaned up threading code
- New, high resolution Icon
- Minimum iOS version is now 4.3
Build 8305668v1.9522012-06-04 19:46:24
(9/16/12): New update with 4" screen support uploaded today, available soon!
- Fixed Metric/Imperial conversion of elastic modulus about z-axis (Sz)
Build 7801037v1.9512012-05-08 18:21:22
MINOR UPDATE: Fixed issue with App settings when quitting the application (removing manually from multi-tasking)
Build 7537857v1.9502012-04-21 16:40:30
- Improved Graphics with much better Retina display support (new cross section thumbnails & background graphics)
- Proper display of same equal length, Short Leg Back-to-Back (SLBB) & Long Leg Back-to-Back (LLBB) Double Angles (2L) cross sections
- Updated options, removed outdated color schemes options
Build 7072267v1.9302012-03-26 19:09:46
- Updated product availability
- Code maintenance
Build 5330967v1.9252011-12-10 01:26:21
Updated available products
Build 4946166v1.9202011-11-18 19:41:40
- fixes crash when converting between English and Metric Units under iOS5.01
Visit us online at www.TheMobilEngineer.com for all your custom software needs!
Build 4390998v1.9102011-10-11 20:34:26
- New AISC Library, the latest version 14 in both Imperial and Metric Units
- New Find Equivalencies function. Quickly find the Metric or Imperial equivalent designation of a section. Containing close to 2000 shapes!
- Tweaked Icon.
- [steel] is now part of The Mobile Engineer line of products! Visit us online at TheMobileEngineer.com for all your custom software needs.
-----------------------------------------
What's new in AISC Library 14 (from AISC release notes):
· Addition of new HP, C, MC and 2L shapes
· Addition of seven new single angle properties: Iw, SwA, SwB, SwC, SzA, SzB, SzC
· Addition of slenderness ratio, b/t, for single angles
· Addition of torsional properties for C and MC: Wno, Sw, Qf, Qw
· Addition of rts and ho for W shapes
· Addition of perimeter parameters PA and PB for W shapes
· Every property is now also available in metric units
