What’s New Version 3.3.2
1) Oil level for Passat B7
2) Oil temperature and Valve N75 for Gen3 engines
3) Button Copy Log
Description
The VAG Virtual Cockpit shows important diagnostic parameters of your car. You only need an ELM327 adapter.
Version 3.3 shows the next parameters.
Virtual Cockpit
1) Opened doors
2) Speed
3) RPM
4) Oil temperature
5) Coolant temperature
6) Fuel in the tank in litres
7) Range in kilometers
8) Average consumption
9) Time in the machine
10) Odometer
11) Outside temperature
12) Voltage
Engine control unit
1) RPM
2) Mass Air Flow Sensor (G70)
3) Intake Air Temperature (G42)
4) Exhaust Temperature Projection
5) Oil Warning Threshold
6) Oil Level
7) Boost Specified
8) Boost Actual
9) Misfire Counter
10) Ignition Angle Delay
11) Oil temperature
12) Valve N75
Transmission control unit
1) ATF Temperature (G93) - AISIN
2) Temperature Transmission Fluid (G93) - DSG6
3) Temperature Control Module (G510) - DSG6
4) Temperature Clutch Oil (G509) - DSG6
5) Temperature Control Device (G510) - DSG7
6) Temperature Microprocessor - DSG7
7) Clutch Temperature - DSG7
Battery control unit
1) Battery voltage
2) Battery current
3) Battery temperature
4) Battery state
6) Battery aging
7) Internal battery resistance
8) Alternator current
9) Alternator power
AWD unit
Haldex 3/4
1) Oil temperature
2) Oil pressure
3) Torque
4) Pump current
5) Supply voltage (Terminal 30)
Haldex 5
1) Oil temperature
2) Pump current
3) Supply voltage (Terminal 30)
4) Pump voltage
5) PWM signal of pump
6) Temperature of the control unit
7) Temperature of friction discs

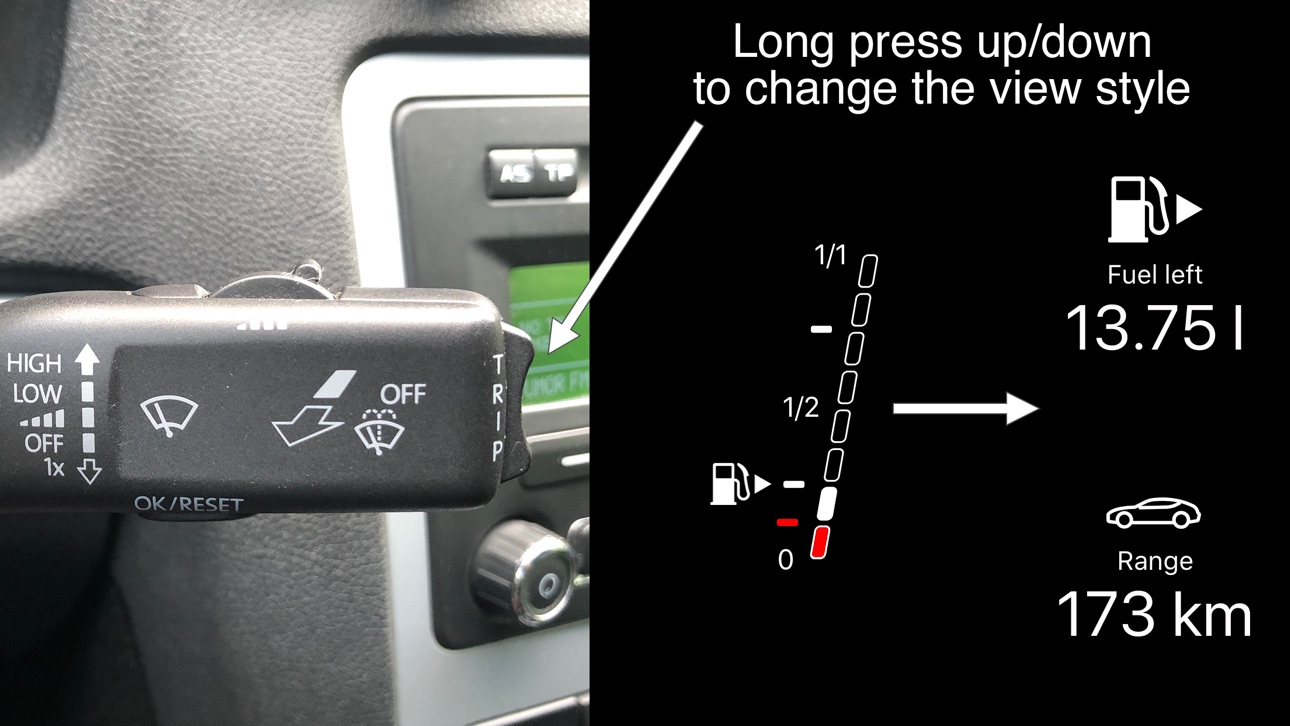

Long hold of the TRIP switch changes the view style of the parameters.
Supported next ELM327 adapters:
- Viecar BLE 4.0
- Konnwei BLE 4.0
- Vgate vLinker MC+
- OBDLink MX+
The application has been tested with Skoda Octavia A5 2011 release.
Partially or fully supported by other auto brands of the VAG group:
Volkswagen
Skoda
Seat
Audi
Porsche
If the parameters are not displayed correctly or not completely, please contact with me by Email: vagvirtualcockpit@ya.ru.
Accessibility
ipadiphonemacrealityDevicetvoswatch
Version history 20 versions
Build 851446638v3.3.22022-08-09 16:19:19
1) Oil level for Passat B7
2) Oil temperature and Valve N75 for Gen3 engines
3) Button Copy Log
Build 848532796v3.3.12022-04-23 13:21:11
1) Support for Audi 2008-2012 dashboards
2) Translation adjustments
3) Сorrect temperature calculation for DL501 transmission
4) Each update will trigger the Scan CAN Bus Protocols
Build 848438688v3.32022-04-20 10:40:35
1) Support for modern DSG6/DSG7 transmissions: DQ200, DQ250, DQ500
2) Support for engines with 4,5,6 cylinders
3) Haldex 5 support
4) Added parameters on the engine screen: Oil temperature, Valve N75 Duty cycle
Build 847827052v3.2.22022-03-21 01:50:19
Haldex 4 fix. Scan CAN Bus Protocols again.
Build 847025978v3.2.12022-03-16 20:51:57
1) Haldex oil temperature
2) Haldex oil pressure
3) Haldex torque
4) Haldex coupling pump current
5) Haldex supply voltage
6) OBD2 profile makes basic diagnostics of any car
Build 846831080v3.22022-02-01 04:06:51
1) Added battery and alternator diagnostic screens. It works on cars released before 2014 with a smart battery terminal.
2) Have been added switches to the settings screen to hide the transmission, battery, alternator screens.
3) Quick reconnection in case of disconnection from the control units.
Build 844022838v3.1.42021-10-04 22:08:33
1) Support the fastest bluetooth adapter OBDLink MX+
2) Increased stability in the operation of the TP 2.0 protocol (for cars up to 2012)
3) Fixed the formula for calculating the Ignition Angle Delay for Gen.2 engines on Audi
4) Added the "Response Waiting Time" setting for the UDS protocol. If you set 1, the polling speed will increase, but some answers may be lost.
Build 843618011v3.1.32021-08-15 22:46:09
Now on Audi with 1.8/2.0 TFSI Gen engines.3 Misfire Counter and Ignition Angle Delay are displayed correctly.
For TDI engines, the parameter Injection Amount Deviation has been added.
Added support for different types of DSG7.
Build 842584566v3.1.22021-06-09 19:19:19
Increased stability of the TP2. 0 protocol for engine and transmission on platforms PQ35, PQ46 and for dashboard on Audi (...2012).
Added automatic quality check of the ELM327 adapter. If the adapter does not support the TP2.0 and UDS protocols, then the OBD2 protocol is used, which can only transmit parameters:
- RPM
- Speed
- Coolant temperature
- Ambient air temperature
- Battery voltage
- MAF air flow rate
- Intake air temperature
Build 842175123v3.1.12021-05-12 21:20:14
Fixes for TDI and Audi Q7 profiles
Build 842018870v3.12021-05-04 19:36:56
1) Added support for the Vgate vLinker MC-IOS Bluetooth adapter
2) Added a profile for 1.2 TSI (cjza)
3) Added profile for Audi A4,A5,A6,A7,A8,Q5 1.8/2.0 TFSI (2008-2016 MLB)
4) Added profile for Audi Q5 2017+
5) Added a profile for modern TDI 2.0/3.0
6) Increased the communication speed of the UDS protocol
7) To display the fuel level scale correctly, you can now set the tank volume
8) Each screen displays the status of communication with the ECU (connected/disconnected)
9) For BSE engines, added support for TP2. 0: Air consumption (77.2), Exhaust temperature (43.2), Ignition timing angle (20-characteristic 1B)
10) Correct display of the ignition timing angle for TSI, TFSI by UDS
11) You can configure the TP 2.0 protocol speed
12) Correction of errors in the operation of the TP 2.0 protocol due to which there was no communication with the dashboard or engine unit
Build 840412622v3.02021-03-13 20:08:13
Added battery voltage to the first screen
Added support for many Audi/VW/Skoda/Seat models
Added support for TP 2.0 and UDS protocols for engine, transmission, and dashboard ECUs
Fixed bugs that caused the app to crash
Redesigned settings interface
Build 835963619v2.3.12020-05-15 09:05:37
Fix to fit a second screen on iPhone 5S/SE.
Fixed the formula for Ignition Angle Delay.
Build 835900431v2.32020-05-12 18:48:46
Added screen with Misfire Counter and Ignition Angle Delay
Build 834679586v2.2.12020-02-12 11:54:53
Supported all Wi-Fi ELM327 adapters and Bluetooth:
- Viecar
- Konnwei
Build 834489043v2.22020-01-25 13:42:41
Added support of Bluetooth 4.0 ELM327 adapters (tested with Viecar)
Build 834089019v2.1.12020-01-09 22:11:49
Added screen with temperature of AISIN, DSG6, DSG7
Added the function of sending the log to the developer
Build 834052513v2.12019-12-18 17:20:30
Added experimental support of automatic transmission
Fixed incorrect oil level display, threshold and oil level were mixed
Added stability when polling engine block
Build 833355800v2.02019-10-30 14:44:53
Added parameters of engine blocks:
- RPM
- Mass Air Flow Sensor (G70)
- Intake Air Temperature (G42)
- Exhaust Temperature Projection
- Oil Warning Threshold
- Oil Level
- Boost Specified
- Boost Actual
Build 831643281v1.02019-06-22 16:38:14
